Types of Flow Meters In Oil & Gas
Introduction
Accurate flow measurement is fundamental in the oil and gas industry. From custody transfer to process control, choosing the right flow meter ensures safety, efficiency, and regulatory compliance. But with so many types available, how do you decide which flow meter suits your needs? This article explores the common types of flow meters used in oil and gas applications and their pros and cons.
Why Flow Measurement Matters in Oil and Gas
Flow meters provide real-time data on the volume or mass of oil, gas, or other fluids passing through a pipeline. This data helps optimize production, detect leaks, and ensure accurate billing.

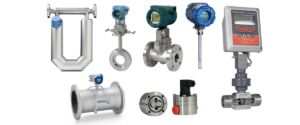

Common Types of Flow Meters
At the core of dosing pumps is the positive displacement mechanism. This mechanism ensures that a fixed amount of fluid is moved with each cycle of the pump. Here’s a breakdown of how it works:
1. Differential Pressure Flow Meters :
- How They Work :
Measure pressure drop across an obstruction like an orifice plate or Venturi tube. - Applications:
Widely used in custody transfer and process monitoring. - Pros :
Simple design, reliable, cost-effective. - Cons:
Pressure loss, affected by flow profile and fluid properties.
2. Ultrasonic Flow Meters :
- How They Work :
Use sound waves to measure velocity of fluid flowing through a pipe. - Applications :
Gas measurement, multiphase flows, and liquids where non-intrusive measurement is needed. - Pros :
No pressure loss, no moving parts, easy installation (clamp-on versions). - Cons :
Performance affected by fluid composition and pipe conditions.
3. Magnetic Flow Meters (Magmeters) :
- How They Work :
Measure voltage generated by conductive fluids moving through a magnetic field. - Applications :
Suitable for liquids with sufficient conductivity, such as water or slurries. - Pros :
No pressure drop, good accuracy, low maintenance. - Cons :
Not suitable for hydrocarbons or non-conductive fluids.
4. Turbine Flow Meters :
- How They Work :
Measure fluid velocity via a spinning turbine blade inside the pipe. - Applications :
Liquid hydrocarbons, refined products, and water injection systems. - Pros :
High accuracy, fast response time. - Cons :
Moving parts prone to wear, affected by fluid impurities.
5. Coriolis Flow Meters :
- How They Work :
Measure mass flow directly by detecting changes in vibration of a vibrating tube. - Applications :
Custody transfer, chemical injection, and multiphase flow measurement. - Pros :
Very accurate, measures mass flow and density. - Cons :
Higher cost, sensitive to vibration and installation conditions.
Innovations and Trends
Recent advances include smart flow meters with IoT connectivity, enhanced diagnostics, and improved multiphase flow measurement capabilities, helping operators optimize production and maintenance strategies.
Conclusion
Understanding the strengths and limitations of each flow meter type is key to optimizing oil and gas operations. Careful selection based on application requirements ensures accurate measurement, improved safety, and cost savings over the long term.
