Static Mixer vs Dynamic Mixer: Which is Better for Oil & Gas Applications?

Introduction

In the oil and gas industry, fluid mixing is a critical operation used in everything from chemical dosing and water treatment to blending hydrocarbons and slurries. Choosing the right mixer can impact process efficiency, product quality, energy consumption, and even safety. At NND Oil & Gas, we specialize in designing and supplying both static mixers and dynamic mixers — each suited for specific applications within oil & gas operations.

What is a Static Mixer?

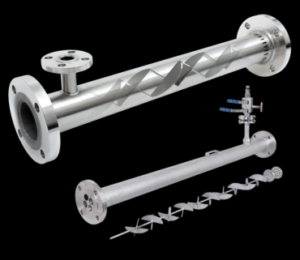

A static mixer, also known as a motionless mixer, is a stationary device installed inside a pipeline. It uses a series of fixed internal elements to create turbulence and achieve thorough mixing as fluids pass through.

Key Features of Static Mixers :

• 1. No moving parts
• 2. Low maintenance
• 3. Compact and easy to install
• 4. Energy-efficient (no external power required)
• 5. Ideal for continuous inline mixing

What is a Dynamic Mixer?

A dynamic mixer, or mechanical mixer, uses rotating impellers or blades powered by a motor to agitate and mix fluids inside a tank or pipeline.

Key Features of Dynamic Mixers :

• 1. Powered mixing with adjustable speed
• 2. Capable of handling complex fluids and high-viscosity materials
• 3. Suitable for batch or continuous processes
• 4. More control over mixing intensity
• 5. Requires maintenance and power supply

Static Mixer vs Dynamic Mixer: What’s the Difference?

Both mixers serve the same fundamental purpose – mixing fluids – but they operate differently and are best suited for different applications.

1. Design & Operation :
Static mixers rely on fluid motion and internal geometry, while dynamic mixers use motor-driven blades. Static mixers are simpler and more compact, while dynamic mixers offer greater control and mixing force.

2. Maintenance & Durability :
Static mixers have no moving parts, making them virtually maintenance-free and reliable for harsh environments. Dynamic mixers involve motors and moving parts, which means higher maintenance requirements and potential downtime.

3. Energy Consumption :
Static mixers do not require external power, which makes them highly energy-efficient. Dynamic mixers consume electricity or hydraulic power, especially in high-viscosity or high-volume applications.

4. Mixing Performance :
Dynamic mixers allow for adjustable and aggressive mixing, ideal for applications needing shear force or agitation (e.g. emulsification, slurries). Static mixers are better for laminar flow blending, chemical dosing, or pH control, where uniformity is more important than intensity.

5. Installation & Footprint :
Static mixers are inline units, easy to install in existing pipelines with minimal space. Dynamic mixers usually require a tank or vessel, plus space for the motor and control system.

Which Mixer is Right for Your Oil & Gas Operation?

At NND Oil & Gas, we help clients choose mixers based on their specific process, fluid properties, and site conditions. Here’s a quick guide:

Conclusion

Both static mixers and dynamic mixers have important roles in oil and gas operations. The right choice depends on your specific application, fluid type, process conditions, and operational priorities.

If you’re unsure which is right for you, contact NND Oil & Gas for a personalized consultation. Our engineers will help you find the best mixing solution that saves energy, reduces maintenance, and improves performance.
