Industrial Corrosion Test Coupons for Monitoring Applications
Corrosion coupons are widely used as monitoring devices to measure corrosion rates in pipelines, vessels, cooling systems, and industrial equipment. They are especially effective in pipeline systems and cooling water circuits, where accurate corrosion tracking is critical.
The corrosion coupon method, also known as the weight loss method, is considered to be one of the most reliable and cost-effective corrosion monitoring methods. By measuring the weight of a sample of metal before and after exposure to a corrosive substance, it is possible to measure the corrosion rate and how aggressively a particular environment is attacking equipment materials.
Industries such as oil & gas, petrochemicals, water treatment plants, and power plants use these monitoring devices for internal corrosion assessment and effective corrosion control. At NND Oil & Gas Solutions, we are committed to providing high-quality corrosion monitoring coupons designed for precise performance in harsh industrial conditions.
How Corrosion Monitoring Coupons Work
These metal samples are installed inside pipelines or process equipment using holders or access fittings. Once in place, they are exposed to the same conditions as the surrounding equipment.
During the monitoring period, there is a gradual corrosion of the metal coupon due to various chemical and environmental factors present inside the system. At the end of the monitoring period, the coupon is withdrawn using a corrosion coupon retrieval tool, cleaned according to industry standards, and then weighed.
The difference between the initial and final weight indicates the amount of metal loss. This measurement is used by engineers to calculate the rate of corrosion and the overall performance of the system.
Corrosion monitoring coupons help industries:
- Monitor internal corrosion levels
- Evaluate corrosion inhibitor effectiveness
- Identify aggressive corrosion environments
- Improve maintenance and inspection planning
Since the results provide a direct measure of metal loss, this method remains one of the most trusted ways to monitor corrosion within an industrial facility.
Types of Corrosion Test Coupons
Various monitoring conditions demand different corrosion coupon configurations. NND Oil & Gas Solutions provides corrosion test coupons designed for different industrial monitoring conditions.

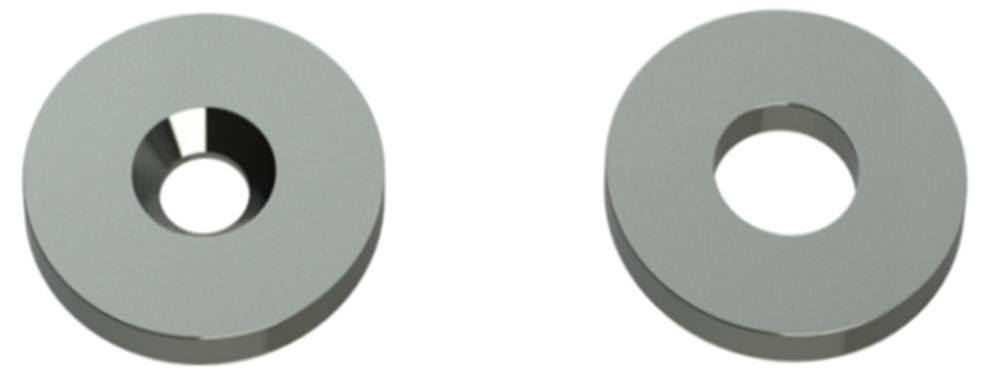

Flush Disc Coupons
Flush disc coupons are designed for flush contact with the inner pipe wall, allowing them to experience the same flow conditions as the pipe surface.

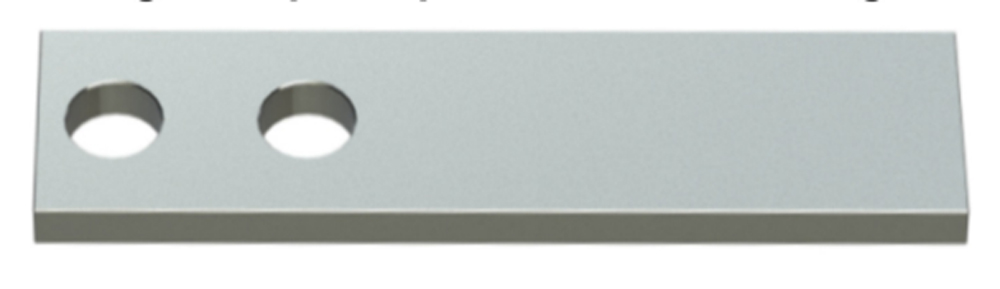

Strip Type Coupons
The strip type corrosion coupon is a rectangular piece of metal, and it is widely used for corrosion monitoring. This type of coupon is more effective for corrosion evaluation and analysis due to its large surface area.
These coupons are manufactured with precision, and they are effective for corrosion measurement.
Product Specifications
| Parameter | Details |
|---|---|
| Types of Corrosion Coupons | Flush Disc, Strip Type |
| Pressure Rating | 150, 300, 400, 600, 900, 1500, 2500 ANSI B16.5 Class |
| Mounting Connection | Flanged End, Flare Weld, Threaded |
| Materials of Construction (MOC) | Carbon Steel, Stainless Steel, Duplex Stainless Steel, Inconel, Hastelloy, Titanium, Teflon, Polypropylene |
| Monitoring Method | Weight Loss Corrosion Measurement |
| Typical Applications | Pipelines, Cooling Towers, Storage Tanks, Refineries, Chemical Plants |
Materials Used in Metal Samples Corrosion Coupons
These monitoring samples are generally made from the same material as the pipeline or equipment under observation. Metal samples corrosion coupons are designed to replicate the actual materials used in pipelines and equipment.
Common materials used include:
- Carbon Steel
- Stainless Steel
- Duplex Stainless Steel
- Inconel
- Hastelloy
- Titanium
Selecting the appropriate material for corrosion monitoring is vital. In some cases, multiple samples made of different materials may be used simultaneously within a corrosion monitoring system.
Applications of Corrosion Monitoring Coupons
These monitoring solutions are used across a wide range of industries where it is essential to track internal corrosion and maintain equipment integrity and safety.
Corrosion Coupon in Pipeline Systems
Pipeline systems that are used to transport products such as oil, gas, chemicals, and water are prone to internal corrosion. By installing corrosion coupons in pipelines, operators can monitor internal corrosion and detect issues before failure occurs.
Pipeline corrosion monitoring allows companies to:
- Detect corrosion early
- Evaluate corrosion inhibitor performance
- Monitor microbial corrosion
- Improve pipeline safety and reliability
Corrosion Coupons in Cooling Tower Systems
Corrosion coupons in cooling tower systems are typically installed in monitoring racks or bypass lines, allowing accurate evaluation of corrosion rates in circulating water systems.
Corrosion Coupon for Oil & Gas Industrial Systems
These monitoring solutions are widely used across various industrial applications to assess corrosion and maintain system integrity.
- Oil & gas production facilities
- Refineries and petrochemical plants
- Chemical processing plants
- Water treatment facilities
These corrosion monitoring tools provide valuable data that helps protect critical infrastructure.
Corrosion Probes and Coupons in Monitoring Programs
Most corrosion monitoring systems use a combination of probes and coupons to achieve a comprehensive understanding of corrosion behaviour. Probes provide real-time monitoring, while coupons measure actual metal loss over time. By using corrosion probes and coupons, engineers can track both real-time activity and long-term corrosion trends. This approach helps improve corrosion management and enhances overall equipment reliability.
Advantages of Using Corrosion Test Coupons
Corrosion monitoring methods using coupons remain widely preferred due to their accuracy and reliability in measuring actual metal loss.
Key advantages include:
- Direct measurement of corrosion rate
- Cost-effective corrosion monitoring method
- Reliable long-term corrosion analysis
- Simple installation and retrieval
- Suitable for harsh industrial environments
These coupons help various industries develop effective methods of preventing corrosion due to their ability to offer accurate data about corrosion.
Why Choose NND Oil and Gas for Corrosion Coupons
At NND Oil & Gas Solutions, we specialize in manufacturing high-quality monitoring solutions designed for effective corrosion control in harsh industrial conditions. Our products are built using premium materials and precise standards to ensure accurate corrosion measurement.
Whether you require solutions for a corrosion coupon in pipeline systems, cooling towers, or other industrial processes, we help you achieve reliable corrosion monitoring for your equipment.
Looking for reliable corrosion monitoring solutions for pipelines, cooling towers, or industrial systems? Contact NND Oil & Gas Solutions for customised designs and fast quotations.
Frequently asked questions
A corrosion coupon is used to assess the rate at which a certain piece of metal corrodes in a pipeline or any system. The piece of metal is then removed and weighed to assess the rate at which corrosion is taking place.
Corrosion test coupons are tested by measuring the weight of the metal sample before and after exposure. This allows the engineer to calculate the corrosion rate and system conditions.
A metal sample is placed in the system for a fixed period, then removed and weighed to measure how much corrosion has occurred.
Corrosion probes and coupons are available in various sizes depending on the monitoring system and application. They are typically supplied in standard forms such as strip type and flush disc designs to fit compatible holders and access fittings.
